DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD1120
QIDELI
QDL-DHD DTH HAMMER
Advantages and characteristics
1. Strict supplier quality management, the use of high-quality steel and hard alloy, warhead service life is long.
2. Using high-quality raw materials and advanced processing techniques for superior performance.
3. The head shape distribution is scientific and diverse, which can complete the construction work of the whole terrain and all directions.
4. Manufacturers direct sales, according to your actual work situation to provide you with a more suitable bit structure.
5. 20 years of profound production experience, ensuring reliable quality.Exported to over 40 countries, highly recognized internationally.
6. A customer repurchase rate of up to 98%, a trusted choice.

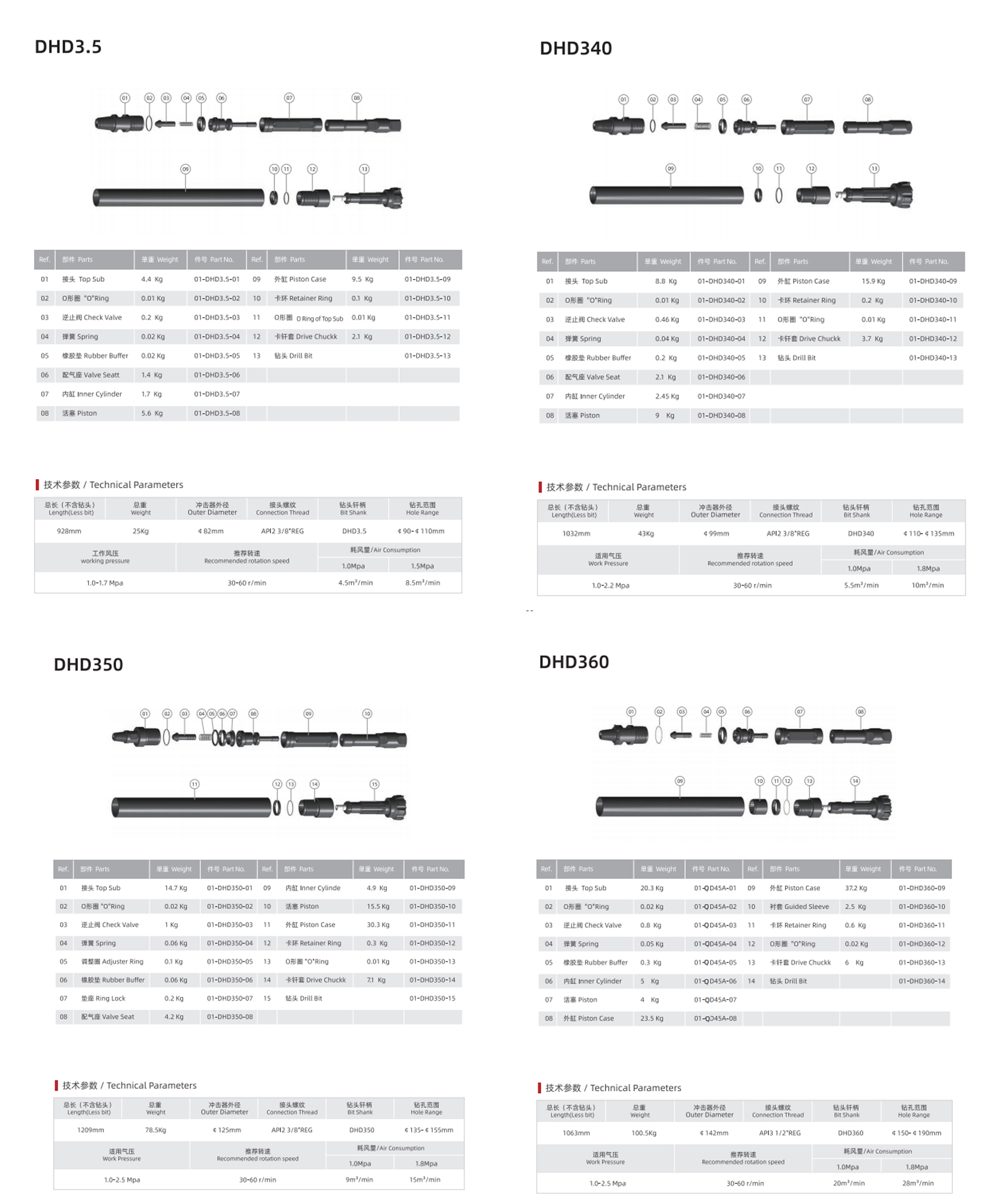

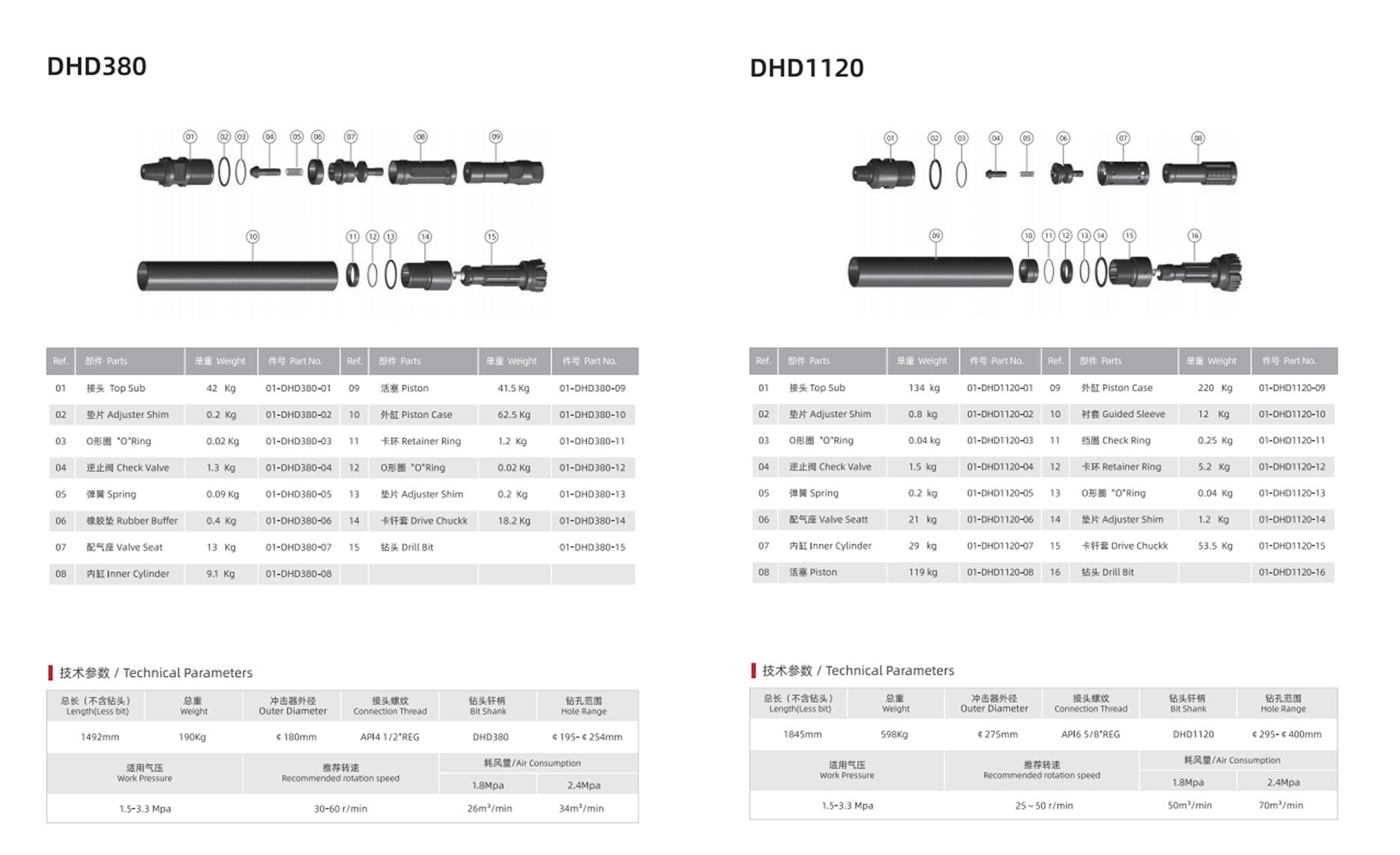

DHD SERIES DTH HAMMER | ||||||||||
| HAMMER TYPE | BIT SHANK | BIT DIAMETER | LENGTH | WEIGHT | OUTER DIAMETER | WORK PRESSURE | Recommended RPM | AIR CONSUMPTION | Brand Compatibility | |
| 1.0Mpa | 1.5Mpa | |||||||||
| DHD 3.5 | DHD3.5 | 90-110mm | 928mm | 25kg | 82mm | 1.0-1.7Mpa | 30-60 r/min | 4.5m³/min | 8.5m³/min | ATLAS EPIROC BD ND QD SANDVIK FURUKAWA ROBIT MING |
| DHD 340 | DHD 340 | 110-135mm | 1032mm | 43kg | 99mm | 1.0-2.2Mpa | 30-60 r/min | 5.5m³/min | 10m³/min | |
| DHD 350 | DHD 350 | 135-155mm | 1209mm | 78.5kg | 125mm | 1.0-2.5Mpa | 30-60 r/min | 9m³/min | 15m³/min | |
| DHD 360 | DHD 360 | 150-190mm | 1063mm | 100.5kg | 142mm | 1.0-2.5Mpa | 30-60 r/min | 20m³/min | 28m³/min | |
| HAMMER TYPE | BIT SHANK | BIT DIAMETER | LENGTH | WEIGHT | OUTER DIAMETER | WORK PRESSURE | Recommended RPM | AIR CONSUMPTION | ||
| 1.8Mpa | 2.4Mpa | |||||||||
| DHD 380 | DHD 380 | 195-254mm | 1492mm | 190kg | 180mm | 1.5-3.3Mpa | 30-60 r/min | 26m³/min | 34m³/min | |
| DHD 1120 | DHD 1120 | 295-400mm | 1845mm | 598kg | 275mm | 1.5-3.3Mpa | 25-50 r/min | 50m³/min | 70m³/min | |
Why Choose QIDELI? |
| Founded in 1990, QIDELI has established itself as a leader in the production, research, and development of drilling tools for mining, well drilling, tunneling, and more. Our export arm, Putian Qideli Engineering Equipment Co., Ltd., entered the international market in 2017 and has since achieved remarkable growth, driven by our commitment to quality, innovation, and customer satisfaction. |
| At QIDELI, we prioritize customer success and satisfaction above all else. Our dedication to excellence, combined with decades of expertise and cutting-edge technology, ensures that choosing QIDELI means choosing reliability, efficiency, and performance excellence for all your cutting needs. |
How to order ?
1.Contact Us:
Click the WhatsApp icon to chat.
2.Confirm Details:
Verify specs, quantity, price via WhatsApp.
3.Agree on Terms:
Clarify FOB/CIF & payment method.
4.Review Documents:
Check proforma invoice & contract.
5.Make Deposit:
Pay to start production.
6.Finalize Payment & Ship:
Pay balance, we'll arrange shipment.
7.Clearance Docs:
We'll provide necessary documents.
Follow these steps & reach out via WhatsApp for any questions. We're here to help!
