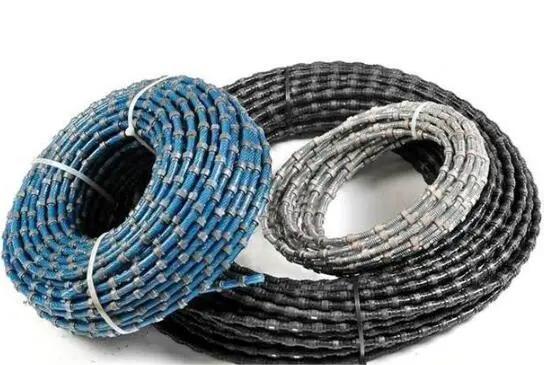

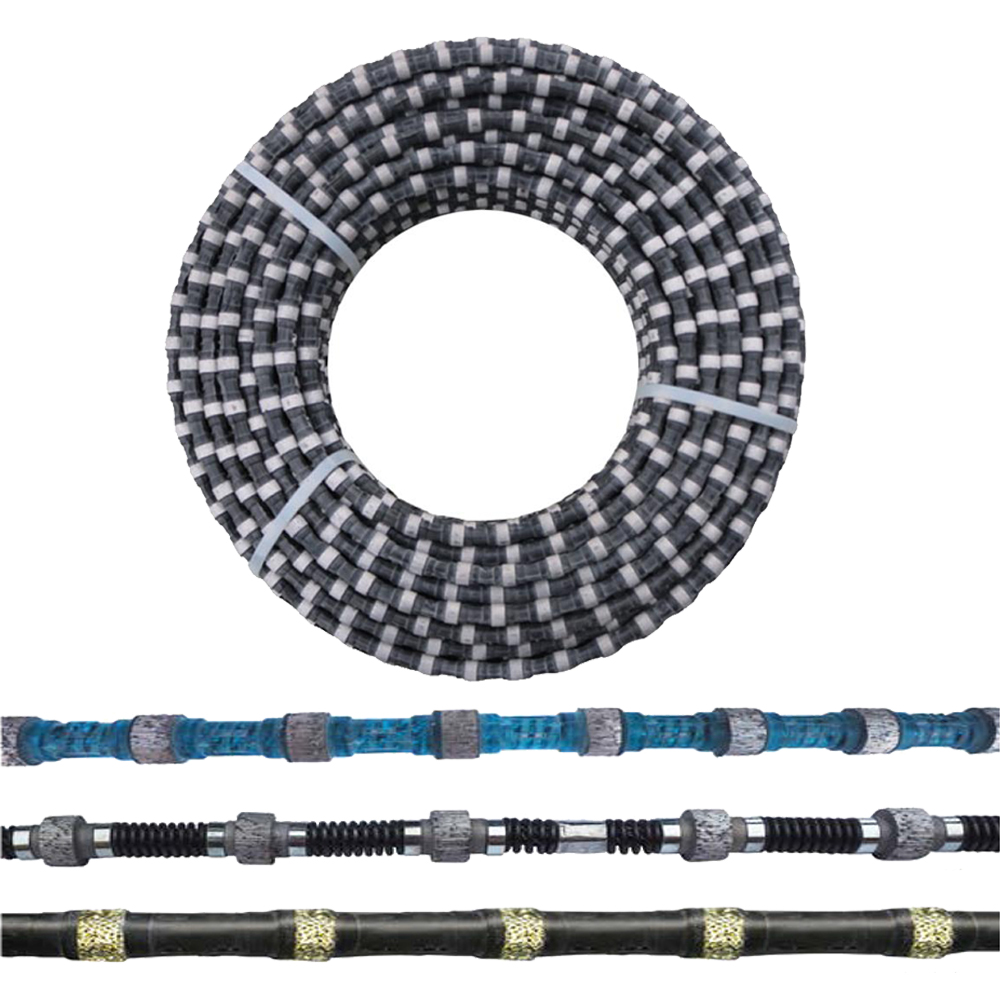

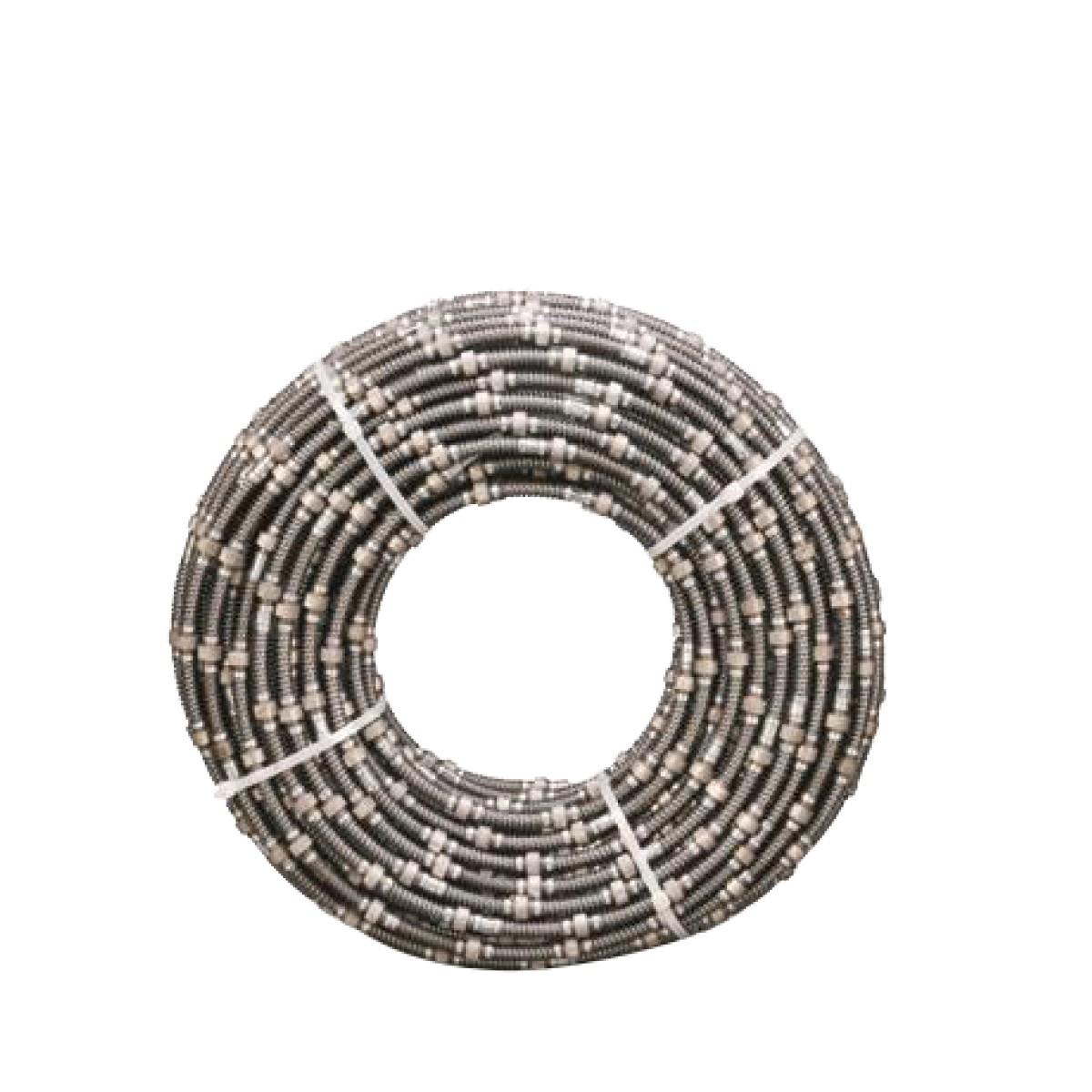

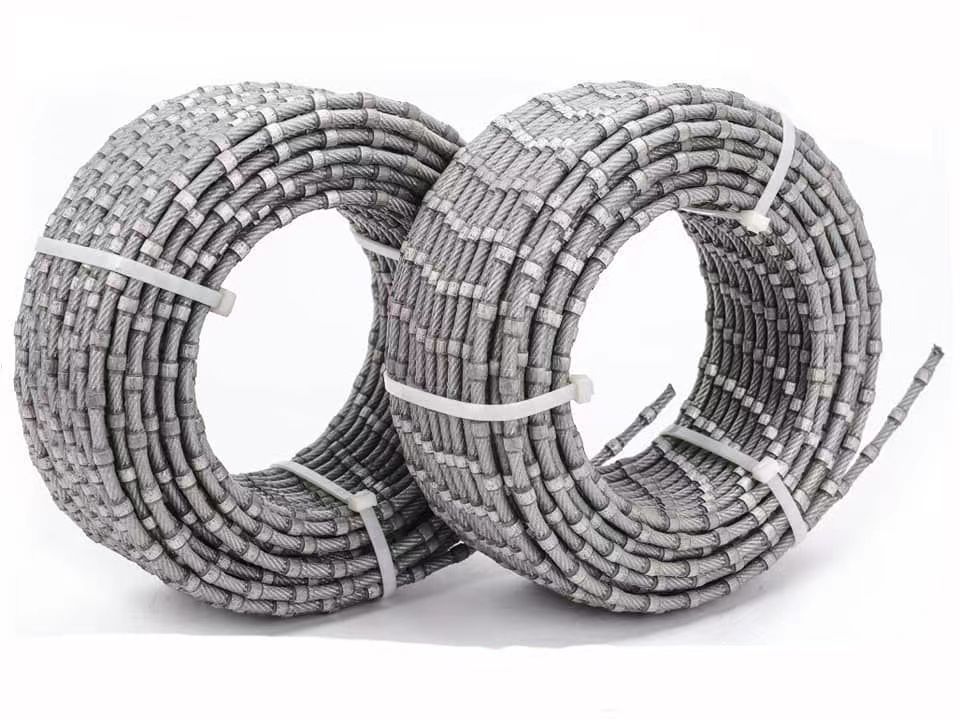

Diamond Rope Saw For Granite Quarry
QIDELI
QDL-wire saw-003
Unleash the Power of QIDELI Diamond Wire Saw!

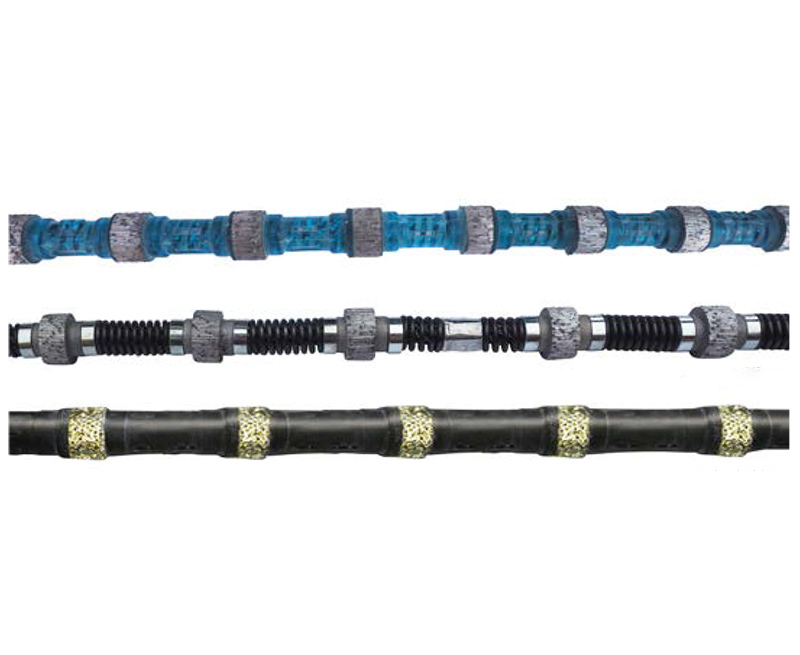

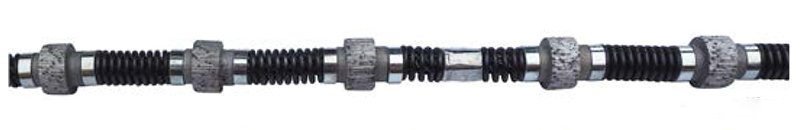

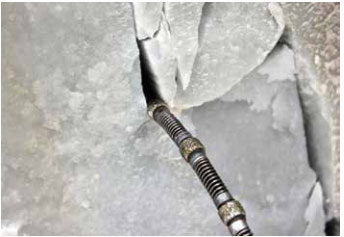

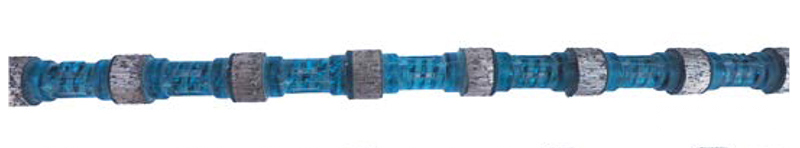

In marble quarries, three different types of assembly can be used in combination with a variations of beads per meter to adapt to the materials and quarrying techniques. ln certain conditions dry cutting is also available.
All wires are developed based on the characteristics of stone samples and information provided by customers for highest cutting efficiency.
| Sintered diamond wire |
| |||||||
| Model | Diameter(mm) | Beads/m | Assembly | Hardness of stone | Wire speed (m/s) | Cutting speed (m²/h) | Production (m²/m) | |
| 37kW | 55/75kW | |||||||
| QDL-DWS-007 | Φ10.5 | 33/37/40 | Spring Rubber+ Spring Plastic+ Spring | Soft | 35-52 | 10-19 | 21-30 | 40-81 |
| QDL-DWS-008 | Φ11 | 33/37/40 | Medium | 35-46 | 8-15 | 16-20 | 26 -60 | |
| QDL-DWS-009 | Φ11.5 | 33/37/40 | Hard | 35-46 | 5-10 | 10-15 | 20-30 | |
| Dry cutting diamond wire |
| |||||||
| Model | Diameter(mm) | Beads/m | Assembly | Hardness of stone | Wire speed (m/s) | Cutting speed (m²/h) | Production (m²/m) | |
| 37kW | 55/75kW | |||||||
| QDL-DWS-010 | Φ11 | 28/31/33 | Spring | Soft | 36-46 | 9-20 | 13-30 | 15-60 |
| QDL-DWS-011 | Φ11.5 | 28/31/33 | Medium | 35-45 | 8-20 | 12-30 | 15-60 | |
| Electroplated diamond wire |
| |||||||
| Model | Diameter(mm) | Beads/m | Assembly | Hardness of stone | Wire speed (m/s) | Cutting speed (m²/h) | Production (m²/m) | |
| 37kW | 55/75kW | |||||||
| QDL-DWS-012 | Φ10.5 | 28/31/33 | Spring Rubber+ Spring | Soft | 35-45 | 10-16 | 16-25 | 15-30 |
| QDL-DWS-013 | Φ11 | 28/31/33 | Medium | 35-45 | 10-16 | 16-25 | 15-30 | |
 |  |
 | |
 |  |
 |  |
|
 |  |
