In the high-stakes environment of deep-well drilling, the difference between a successful operation and a costly delay often comes down to a few millimeters of engineering precision. Imagine two drilling teams operating in similar geological formations: one utilizes standard, off-the-shelf equipment, while the other employs a solution from a dedicated Custom Odex Bit Supplier in China. While the former struggles with frequent "tripping" to replace worn cutters due to unexpected rock hardness or severe borehole collapse, the latter maintains a consistent Rate of Penetration (ROP), having calibrated their bit’s reaming structure and cutter grade to the specific strata. This scenario underscores a fundamental shift in the global industrial sector—moving away from the limitations of mass-produced tools toward application-specific efficiency that prioritizes long-term performance over initial purchase price.
To understand the necessity of this shift, one must first examine the inherent vulnerabilities of standardization. Mass-produced casing drilling tools are inherently designed for the "average" condition, a theoretical median that rarely exists in complex mining, water well, or pile foundation projects. These tools are manufactured in high volumes to meet a broad range of general specifications, which inevitably results in a technical compromise between durability and versatility. In challenging environments—such as loose overburden layers, boulder beds, backfill, or fractured formations—mass-produced bits frequently suffer from premature button fracture, body shearing, or severe clogging.
For the operator, using a generic tool often leads to a "one size fits none" outcome. When a bit is not tuned to the specific casing dimensions and rig capabilities, it either drills too slowly, wasting fuel and labor hours, or the components jam within the casing, necessitating expensive work-stoppages to pull the drill string and replace the head. In deep-hole applications, the risk of stuck drills or dropped components can account for a significant portion of the total project budget.
This is precisely where the value of a tailored engineering approach becomes clear, as efficiency in modern drilling is defined by the synergy between the tool and the terrain. QIDELI addresses the inherent inefficiencies of standardized tools by offering a sophisticated, application-oriented customization framework backed by over 10 years of continuous optimization in overburden drilling systems. QDL boasts an exceptionally comprehensive ODEX bit portfolio ranging from small 90mm up to large-diameter options exceeding 500mm. This technical process does not merely involve selecting a diameter; it begins with a comprehensive analysis of the drilling environment, encompassing the drilling method (DTH or rotary), rock strata density, borehole diameter, operating air pressure, and specific site working conditions.
By adjusting critical variables such as reaming mechanism, shank configuration, and button layout, customized ODEX bits are optimized for a singular goal: maximum output in a specific context. To ensure seamless integration with international setups, QDL can customize different bit shanks to fit various hammer models—including CIR, P, QD, HD, DHD, MISSION, QL, SD, NUMA, MACH, and BR. This allows global contractors to adapt any specialized ODEX bit without switching their DTH hammers. This bespoke approach ensures that every joule of energy delivered by the drilling rig is converted into borehole progress with minimal mechanical waste.
The operational superiority of this customized framework is structurally manifested across QDL’s six distinct overburden drilling systems, each precision-engineered for specific geological challenges:

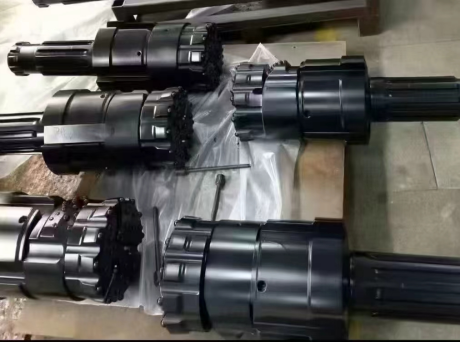

l Eccentric Overburden Drill System (ODEX): Features a guide bit, eccentric reamer, stabilizer, and locking device. It automatically opens during forward rotation to create a hole larger than the casing, and retracts during reverse rotation for smooth retrieval. It is ideal for high-hardness, complex strata in water wells and anchoring, making it the most widely used layout globally.
l 2-Wing Eccentric Reaming Bit: Utilizing a dual-wing reaming structure, it offers a larger reaming area and stronger flushing capabilities. Specially suited for loose, soft formations and low-pressure drilling (e.g., CIR90M, CIR110, CIR130 shanks), it minimizes equipment requirements and operational costs across 0–30m depths.
l Swing Wing Drill Bit: Designed with three diamond-shaped mechanical swing wings, this system automatically expands during forward rotation. Originally optimized for small rigs in the Russian water well market, it delivers outstanding adaptation in complex overburdens and shallow casings.

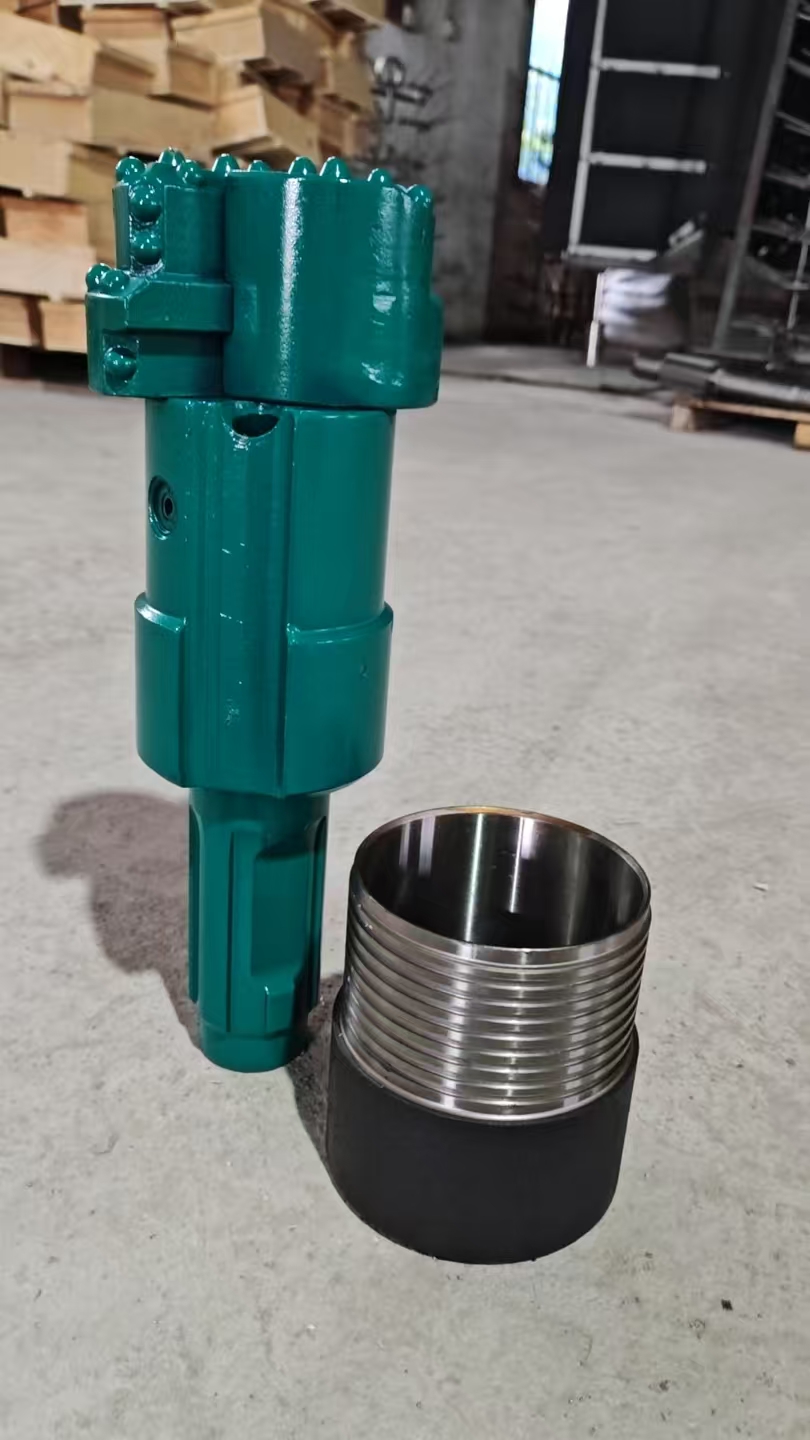

l 3-Wing Concentric Casing System: Built with a stabilizer, three reaming wings, and a center bit, it reams via normal downward pressure and retracts upon lifting. It eliminates the risk of dropping bits due to reverse rotation, lowers operator skill requirements, and excels in 0–40m soft strata or hard overburden layers.

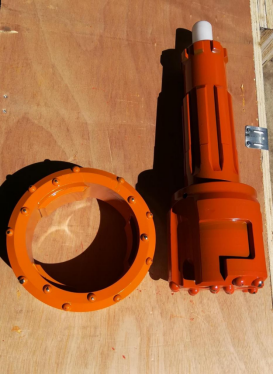

l Ring Bit Concentric Casing System: Employs an integrated ring bit and casing shoe setup that achieves unmatched hole stability and perfect alignment. Specially recommended for complex loose ground or deep wells beyond 50m, it minimizes frictional resistance and stuck-drill risks, though its cost per use is higher since the ring bit is left at the hole bottom.
l Sliding Block Drill Bit: Uses a sliding block extension structure that deploys automatically when drilling and retracts when lifted. It stands out for its durability and stability in continuous, large-diameter foundation pile hole construction within shallow complex rock layers.
To support these diverse structural configurations, QDL integrates several advanced manufacturing parameters to ensure maximum performance:
l Metallurgical Excellence: QDL ODEX bits are forged from high-quality special alloy steel combined with a deep carburizing heat treatment. This grants the bit surface supreme hardness and exceptional wear resistance, dramatically preventing gap expansion caused by abrasive rock cuttings that often leads to stuck blocks or jammed retrieval.
l Hydraulic Optimization: Custom-designed flow ports and junk slots are calculated based on the expected volume of debris. This ensures efficient cuttings removal, preventing clogging and maintaining a cool temperature at the cutting edge.
l Precise Button Infiltration: Leveraging its 20-year mastery in DTH bit manufacturing, QDL utilizes large-scale CNC machinery and an integrated drilling-and-reaming process to secure button sockets. This engineering precision holds QDL's abnormal button-dropping rate under 0.5% and the bit fracture rate under 1%.
l Casing Matching Confidence: To resolve the common industry headache of dimensional mismatching between bits and steel/PVC pipes, QDL offers a streamlined verification service. Clients only need to provide the bit shank and casing dimensions (ID/OD), and QDL provides corresponding technical blueprints for absolute purchasing confidence.
Because these technical parameters can be precisely adjusted, QDL’s Customized ODEX solutions are essential across various high-growth industrial landscapes where efficiency correlates directly with profitability:
l Loose Stratum Drilling & Overburden Construction: Preventing borehole collapse during initial casing phases or when cutting through highly unstable ground.

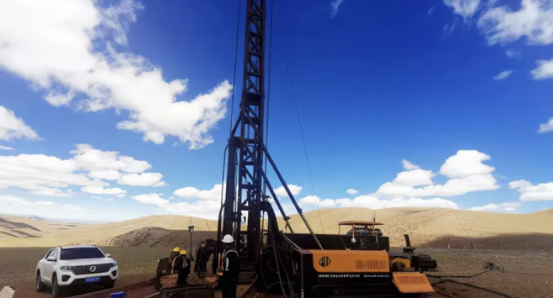

l Water Well & Geothermal Drilling: Overcoming thick overburden layers, such as a major deep-well project in Chile. Confronted with loose soil and fractured rock that caused conventional eccentric bits to jam and stall casing progress, QDL deployed its optimized Ring Bit Concentric Casing System. The integrated ring bit and casing shoe structure dramatically minimized rotational friction and casing resistance, enabling a smooth 80-meter continuous casing run that completely transformed the contractor's operations.
l Piling & Foundation Engineering: Supporting large-scale piling, foundation work, and slope support where precision, hole verticality, and speed are paramount to meeting strict project deadlines.
By integrating international standards such as ISO9001 and SGS into their manufacturing framework, these tools meet the rigorous safety and performance requirements of the global supply chain, serving as a reliable bridge between high-tier Chinese industrial manufacturing and international project requirements.
The transition from a general manufacturer to a specialized technology provider is a process that requires decades of empirical data and field testing. QIDELI’s manufacturing history dates back to 1993, representing over 30 years of continuous focus on rock drilling core technologies. QDL initiated its specialized overburden tool production in 2009, bringing over 15 years of dedicated casing expertise to the market. Based in Putian, Fujian, the company operates as a fully integrated enterprise. This vertical integration is a critical component of the customization value proposition; by managing in-house production, rigorous quality control, and direct export logistics, the firm ensures that the specific requirements of a global B2B client are translated accurately from the technical blueprint to the final heat-treated product.
This long-term focus has resulted in a robust global footprint, with an annual export value exceeding USD 10 million.Today, QDL’s ODEX systems have achieved a reliable reputation across diverse regions: in Russia and Ukraine, its swing wing, eccentric, and large-diameter concentric systems provide low failure rates in deep winter soils; across Southeast Asia (Vietnam, Indonesia, Malaysia), its adaptive tools conquer alternating soft and hard sand layers; in Africa (South Africa, Morocco), its wear-resistant design serves as a proven high-tier replacement for Tier-1 global brands; and in South America (Chile, Uruguay), its concentric casing series sets the standard for high-straightness deep wells. In an industry where field performance is the only metric for trust, a repeat purchase rate of over 97% and a product defect feedback rate of below 1% serve as objective indicators of manufacturing reliability.
As the global demand for resources and infrastructure development grows, the hidden costs of "one-size-fits-all" tools become a significant economic liability. The comparison between mass-produced tools and customized ODEX bit services reveals that true efficiency is found in specialization. By focusing on the specific work conditions of each project, operators can achieve an extremely low risk of stuck drills, significantly longer tool life, and more predictable project timelines. Many global water well and foundation contractors report that QDL’s ODEX bits provide unmatched handling smoothness and operational confidence even in the most unforgiving geologies. In the modern industrial era, a bit that is "good enough" is no longer sufficient; the goal is a tool that is engineered to win.
