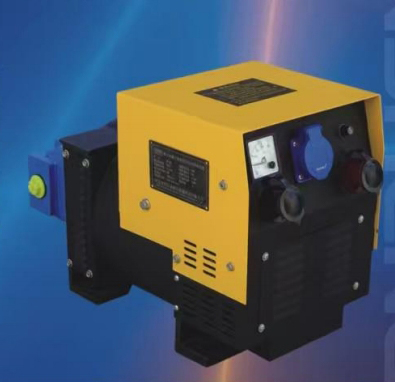

HydraSync™ PMX Brushless PowerGen

Model Type: HWG-350

Rated Welding Current (A): 300

No-Load Welding Voltage (DC) (V): 80

Rated Welding Capacity (Kw): 11

Welding Operating Voltage (DC) (V): 25-35

Welding Current Adjustment (A): 100-350

Applicable Electrode (mm): 2.5-5.0

Rated Duty Cycle (%): 80%

Output Rated Voltage (V)/DC: 220V

Output Rated Power (W): 2500

Rated Revolution (r/min): 3000

Revolution Range: 2500-3200

Combined Power Engine (Kw): ≥13

Class of Insulation: B

Dimensions L×W×H (mm): 310×200×310

Net Weight (KG): 35

Product Description:

Introducing our advanced Hydraulic-Driven Permanent Magnet Brushless AC Synchronous Generator, a revolutionary power solution designed for mobile and remote operations. Replacing traditional diesel engines, this generator is driven by a hydraulic motor, utilizing the hydraulic power source from onboard systems to deliver smooth, reliable, and efficient performance.

Key Features & Benefits:

High Efficiency: Equipped with rare-earth permanent magnet technology, this generator achieves significantly higher working efficiency than conventional models, ensuring energy savings during operation.

Compact & Lightweight: Designed for portability, it features a small footprint and reduced weight, making it ideal for space-constrained environments.

Maintenance-Free: Engineered for durability and minimal upkeep, reducing downtime and operational costs.

Versatile Applications: Perfect for powering inductive loads such as submersible pumps, air compressors, blowers, and other secondary motors in construction vehicles, agricultural machinery, mining equipment, and island operations.

Field-Ready: Exceptionally suited for mobile and remote operations, including construction sites, farmlands, mining areas, and islands, where reliable power is critical.
