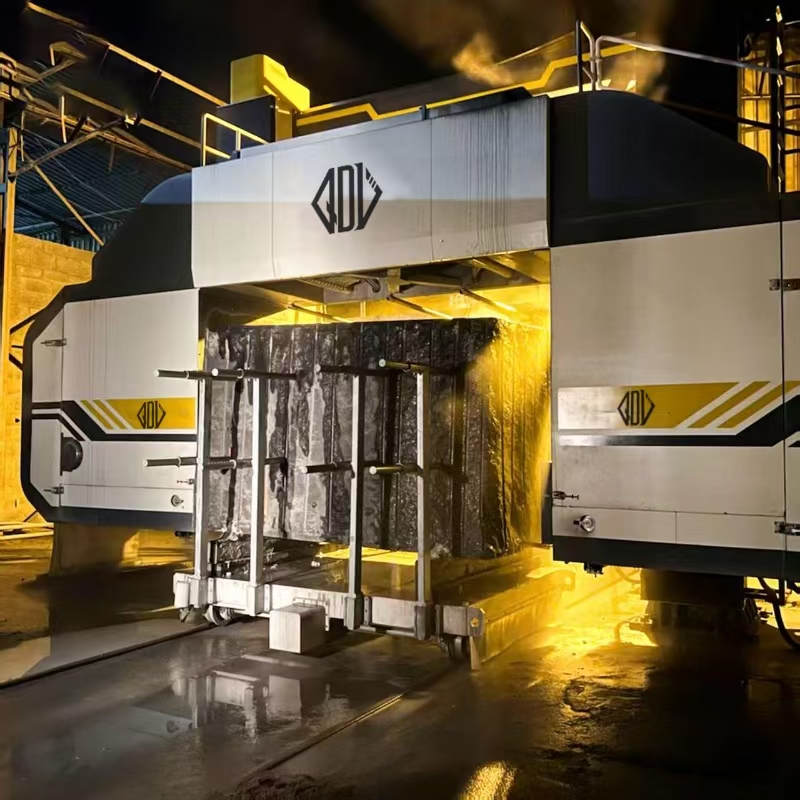

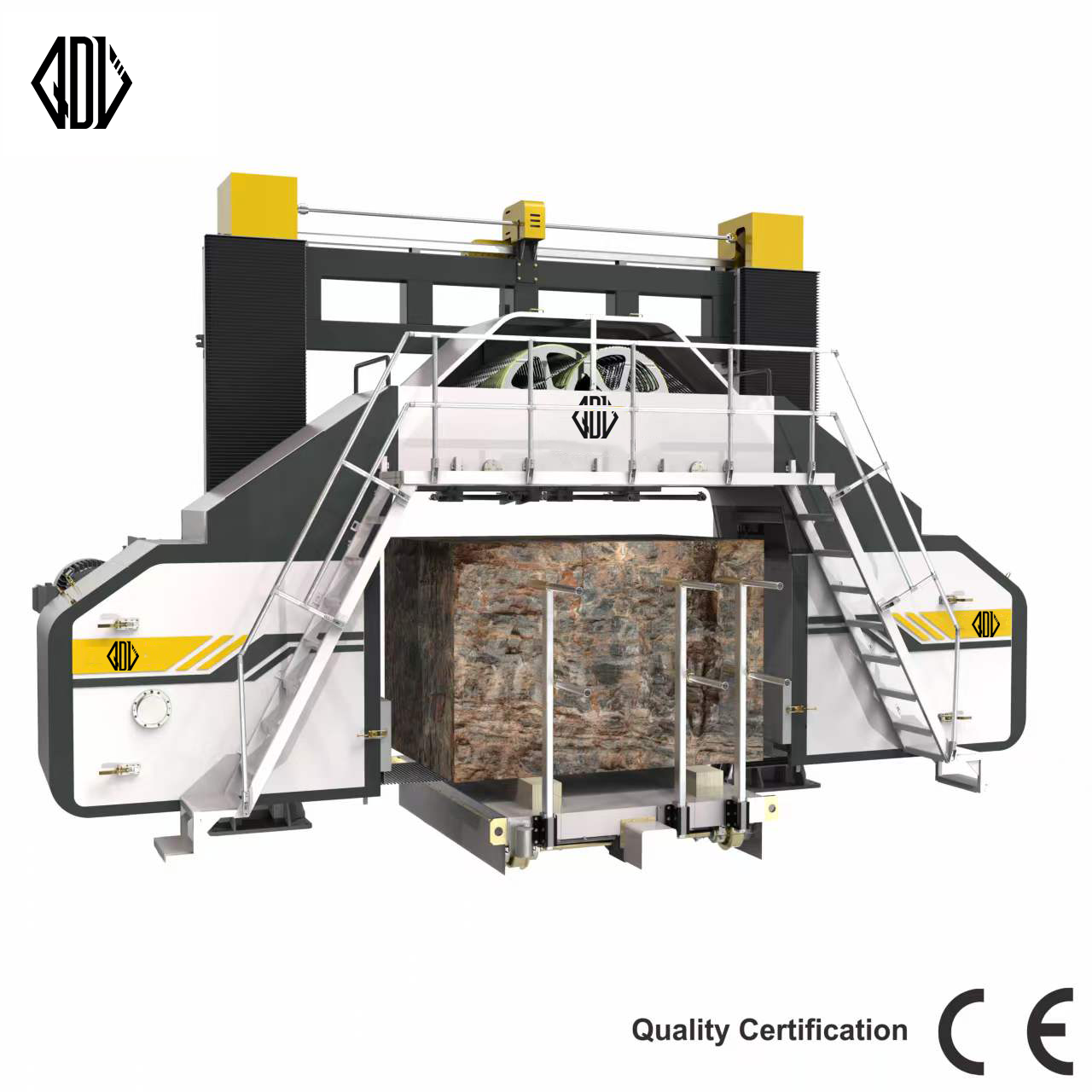

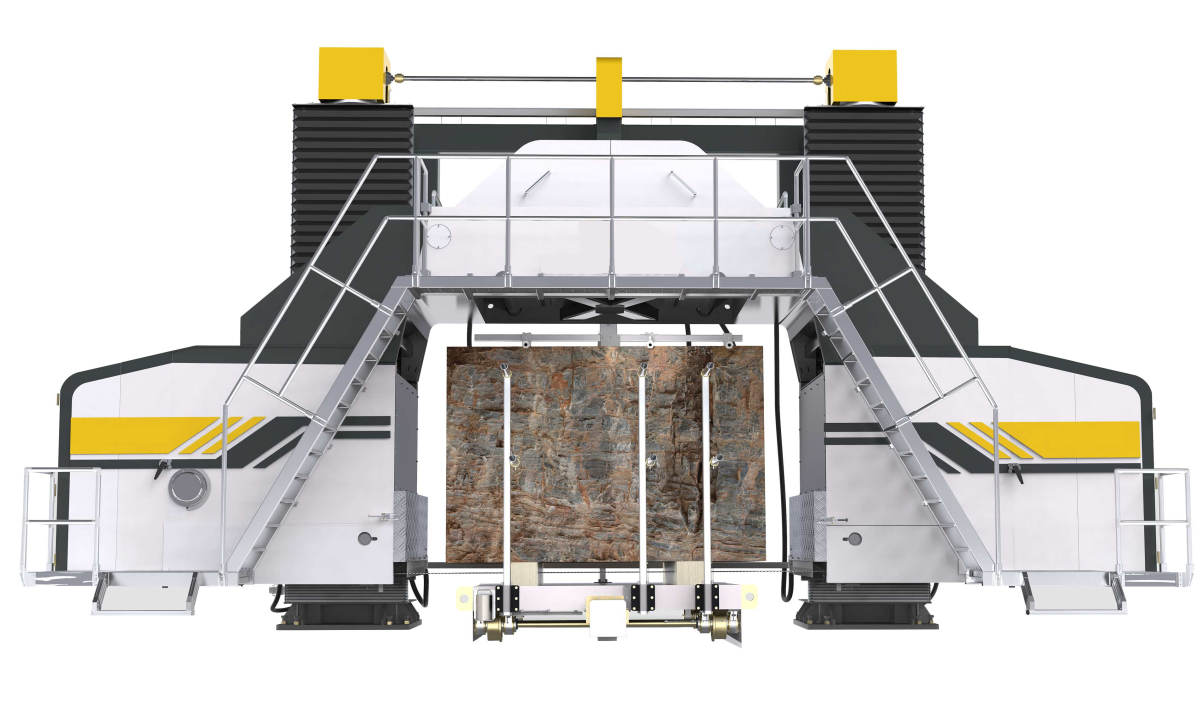

Multi-Wire Saw Machine
QIDELI
Multi-Wire Saw Machine-001
Unleash the Power of QIDELI Multi-Wire Saw Machine!
|
| Equipment Model | Unit | QDL-MW32 | QDL-MW50 | QDL-MW74 | QDL-MW76 | QDL-MW80 |
| Wire Saw Diameter | mm | Φ7.3 | Φ7.3 | Φ7.3 | Φ6.3 | Φ5.5 |
| Plate Thickness | mm | 20/30/50/ 70/80/90 | 20/30/50/ 70/80/90 | 20/30/50/ 70/80/90 | 20/30/40/ 50/60/70/80 | 20/30/50/ 70/80/90 |
| Number of Wire Saws | pcs | 32/24/16 /12/11/10 | 50/38/25/ 19/17/15 | 74/55/37/ 28/25/22 | 76/57/46/ 38/33/27/25 | 80/60/40/ 30/27/24 |
| Wire Saw Length | m | 20 | 20 | 20 | 20 | 20 |
| Maximum Cutting Height | mm | 2200 | 2200 | 2200 | 2200 | 2200 |
| Maximum Cutting Length | mm | 3500 | 3500 | 3600 | 3600 | 3700 |
| Linear Velocity | m/s | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Tension | kg | 250 | 250 | 250 | 210 | 170 |
| Cooling Water Volume | L/min | 500 | 750 | 1100 | 1100 | 1100 |
| Equipment Dimensions(LWH) | m | 1046 | 1056 | 1086 | 1086 | 1086 |
| Equipment Weight | t | 28 | 42 | 51 | 52 | 53 |
 |  |
|
 |  |
