PermaFlow® Elite Mobile Generator

Model: HG 9/E400-40

Rated Revolution: 1500 r/min

Rated Power: 9 Kw

Standby Power: 10.3 Kw

Frequency: 50 Hz

Rated Voltage: 400 V

Rated Current: 12.3 A

Phase: 3

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1

Generating Efficiency: 96%

Hydraulic Motor Flow: 40 L/min

Model: HG 13/E400-40

Rated Revolution: 1500 r/min

Rated Power: 13 Kw

Standby Power: 15.0 Kw

Frequency: 50 Hz

Rated Voltage: 400 V

Rated Current: 17.8 A

Phase: 3

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1

Generating Efficiency: 96%

Hydraulic Motor Flow: 40 L/min

Model: HG 16/E400-45

Rated Revolution: 1500 r/min

Rated Power: 16 Kw

Standby Power: 18.4 Kw

Frequency: 50 Hz

Rated Voltage: 400 V

Rated Current: 21.9 A

Phase: 3

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1

Generating Efficiency: 96%

Hydraulic Motor Flow: 45 L/min

Model: HG 22/E400-60

Rated Revolution: 1500 r/min

Rated Power: 22 Kw

Standby Power: 25.3 Kw

Frequency: 50 Hz

Rated Voltage: 400 V

Rated Current: 30.4 A

Phase: 3

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1

Generating Efficiency: 96%

Hydraulic Motor Flow: 60 L/min

Product Description:

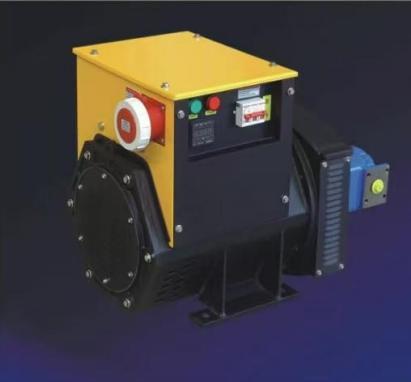

Introducing our advanced Hydraulic-Driven Permanent Magnet Brushless AC Synchronous Generator, a revolutionary power solution designed for mobile and remote operations. Replacing traditional diesel engines, this generator is driven by a hydraulic motor, utilizing the hydraulic power source from onboard systems to deliver smooth, reliable, and efficient performance.

Key Features & Benefits:

High Efficiency: Equipped with rare-earth permanent magnet technology, this generator achieves significantly higher working efficiency than conventional models, ensuring energy savings during operation.

Compact & Lightweight: Designed for portability, it features a small footprint and reduced weight, making it ideal for space-constrained environments.

Maintenance-Free: Engineered for durability and minimal upkeep, reducing downtime and operational costs.

Versatile Applications: Perfect for powering inductive loads such as submersible pumps, air compressors, blowers, and other secondary motors in construction vehicles, agricultural machinery, mining equipment, and island operations.

Field-Ready: Exceptionally suited for mobile and remote operations, including construction sites, farmlands, mining areas, and islands, where reliable power is critical.
