Key Specifications‌:

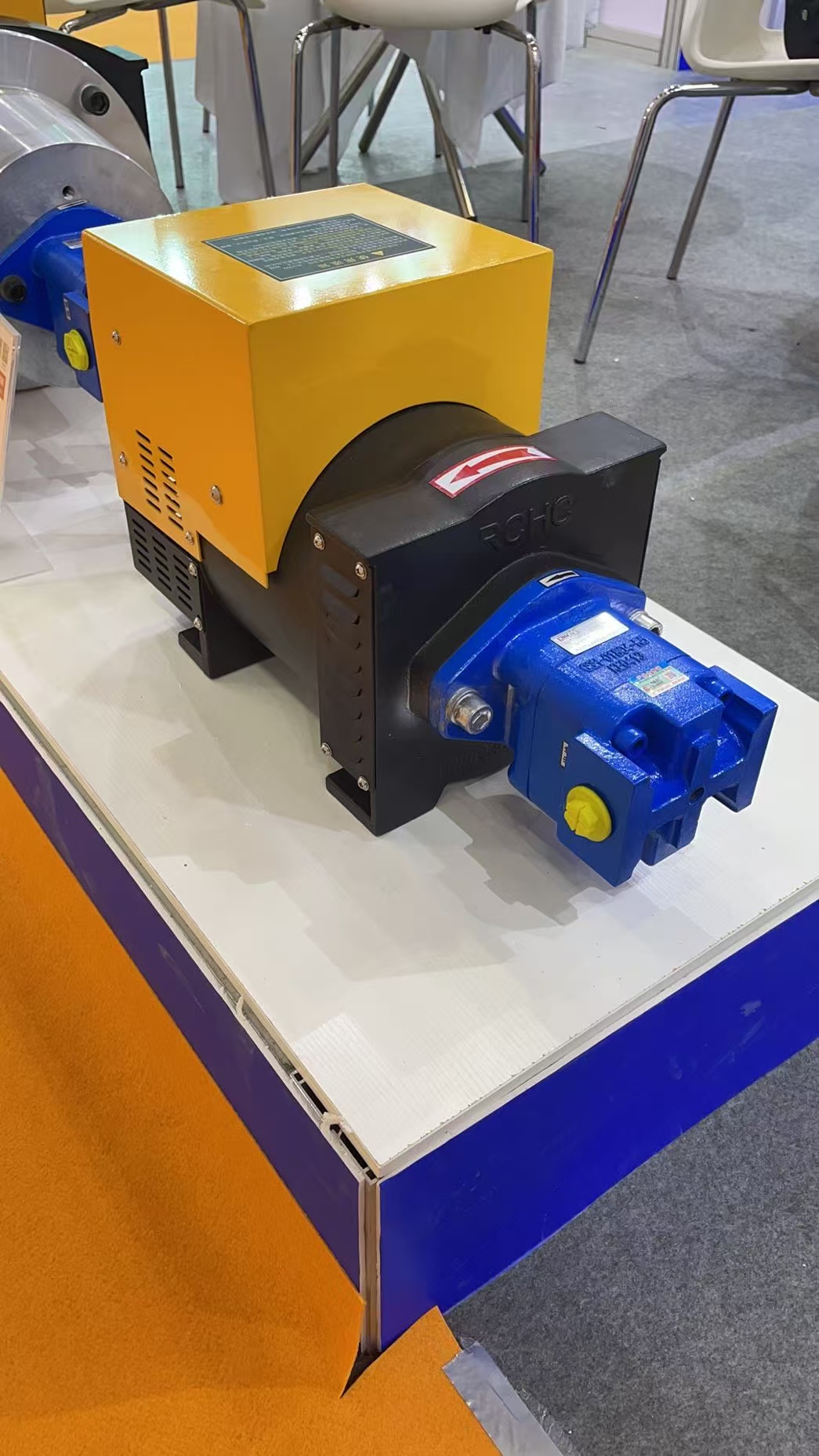

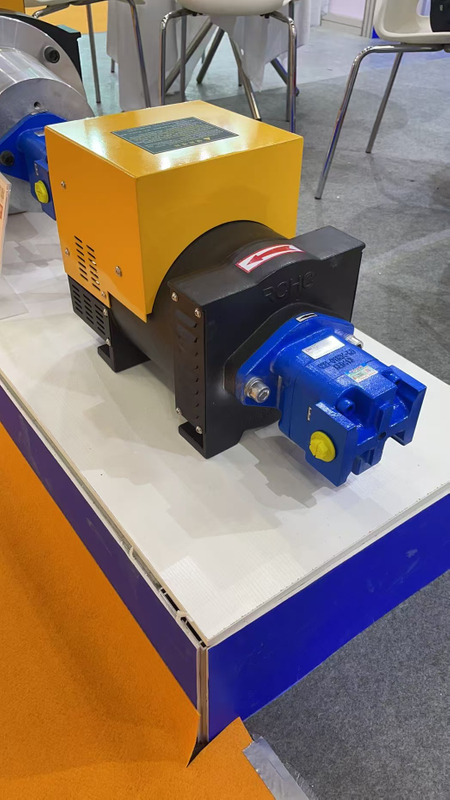

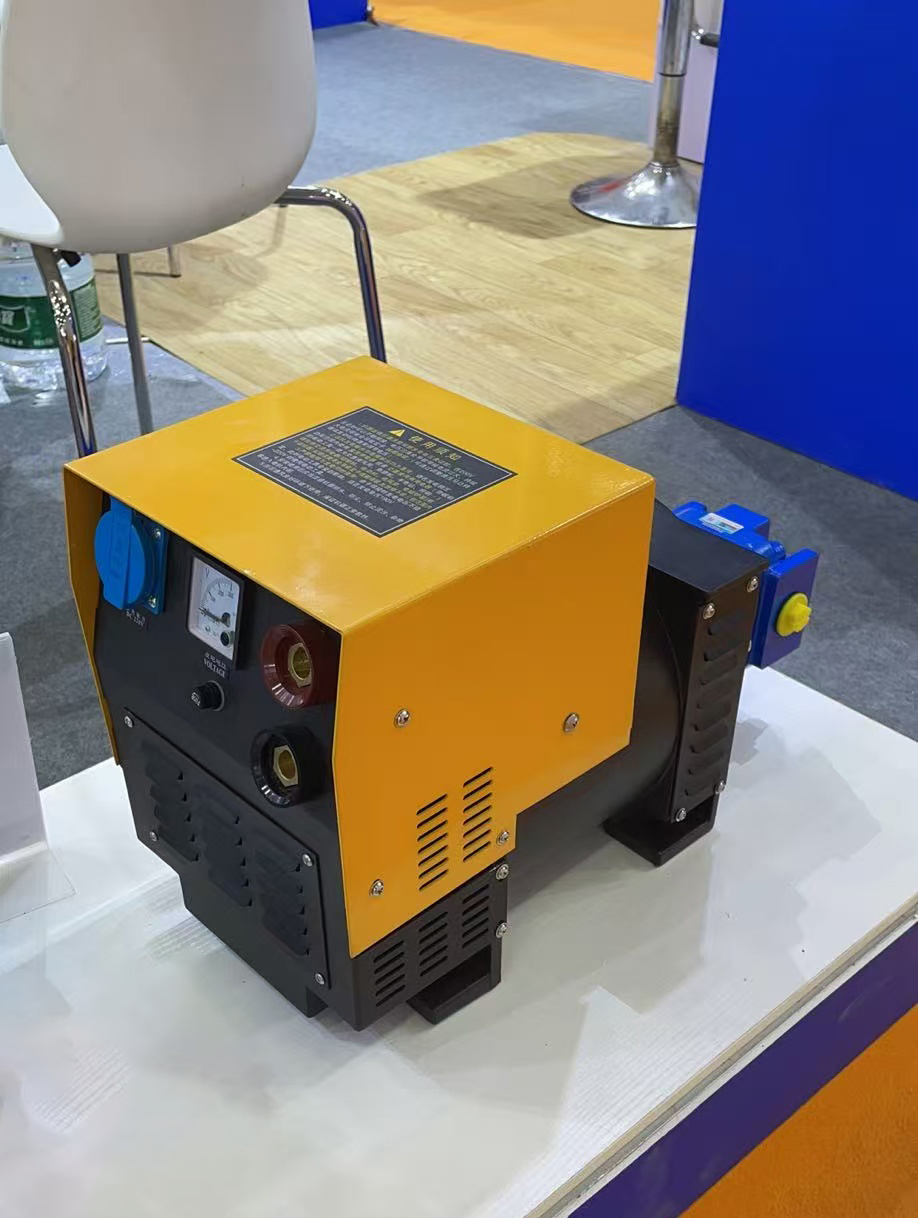

‌Model‌: HWG315A/20K-60

‌Capacity‌: 18.5KVA

‌Rated Welding Current‌: 300A

‌No-load Welding Voltage‌: 70W

‌Rated Load Continuity‌: 70%

‌DC Welding Voltage‌: 25-35V

‌Rated Speed‌: 3000r/min

‌DC Generated Voltage‌: 220V

‌Insulation Class‌: B

‌Generated Power Output‌: 2000W

‌Motor Displacement‌: 20ml/r

‌Speed Regulation Range‌: 2500-3200r/min

‌Rated Pressure‌: 21MPa

‌Input Flow Rate‌: 60L/min

‌Highlighted Features‌:

‌Versatile Application‌: Ideal for both DC arc welding and electric welding, ensuring you can handle a wide range of welding tasks with a single machine.

‌High Efficiency‌: Generate up to 2000W of power, making it suitable for demanding welding projects.

‌Reliable Performance‌: Insulation class B ensures stable and safe operation.

‌Easy Speed Control‌: With a speed regulation range of 2500-3200r/min, you can easily adapt to different welding conditions.

‌Consistent Pressure‌: The rated pressure of 21MPa ensures consistent welding quality.

‌Efficient Input Flow‌: The input flow rate of 60L/min ensures that the machine operates smoothly and efficiently.

The HWG315A/20K-60 is designed to deliver exceptional performance and versatility, making it an excellent choice for professional welders and serious hobbyists alike.

Elevate your welding projects with this powerful and reliable machine.
