VortexDrive ECO-NRG Series

Model: HG 5/E400-40

Rated Revolution: 1500 r/min

Rated Power: 5 Kw

Standby Power: 5 Kw

Frequency: 50 Hz

Rated Voltage: 230 V

Rated Current: 21.7 A

Phase: 1

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1Generating Efficiency: 96%Hydraulic Motor Flow: 40 L/minModel: HG 8/E400-40

Rated Revolution: 1500 r/min

Rated Power: 8 Kw

Standby Power: 8 Kw

Frequency: 50 Hz

Rated Voltage: 230 V

Rated Current: 34.8 A

Phase: 1

Pole NO.: 4

Insulation Grade: H

Power Factor (cos φ): 1

Generating Efficiency: 96%

Hydraulic Motor Flow: 40 L/min

Product Description:

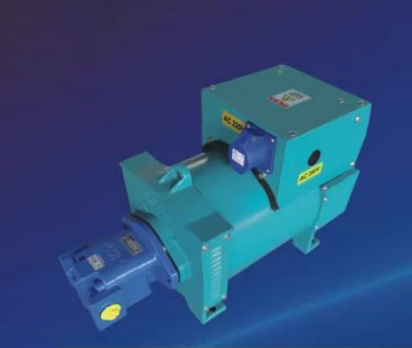

Introducing our advanced Hydraulic-Driven Permanent Magnet Brushless AC Synchronous Generator, a revolutionary power solution designed for mobile and remote operations. Replacing traditional diesel engines, this generator is driven by a hydraulic motor, utilizing the hydraulic power source from onboard systems to deliver smooth, reliable, and efficient performance.

Key Features & Benefits:

High Efficiency: Equipped with rare-earth permanent magnet technology, this generator achieves significantly higher working efficiency than conventional models, ensuring energy savings during operation.

Compact & Lightweight: Designed for portability, it features a small footprint and reduced weight, making it ideal for space-constrained environments.

Maintenance-Free: Engineered for durability and minimal upkeep, reducing downtime and operational costs.

Versatile Applications: Perfect for powering inductive loads such as submersible pumps, air compressors, blowers, and other secondary motors in construction vehicles, agricultural machinery, mining equipment, and island operations.

Field-Ready: Exceptionally suited for mobile and remote operations, including construction sites, farmlands, mining areas, and islands, where reliable power is critical.
