YH-2500D
QIDELI

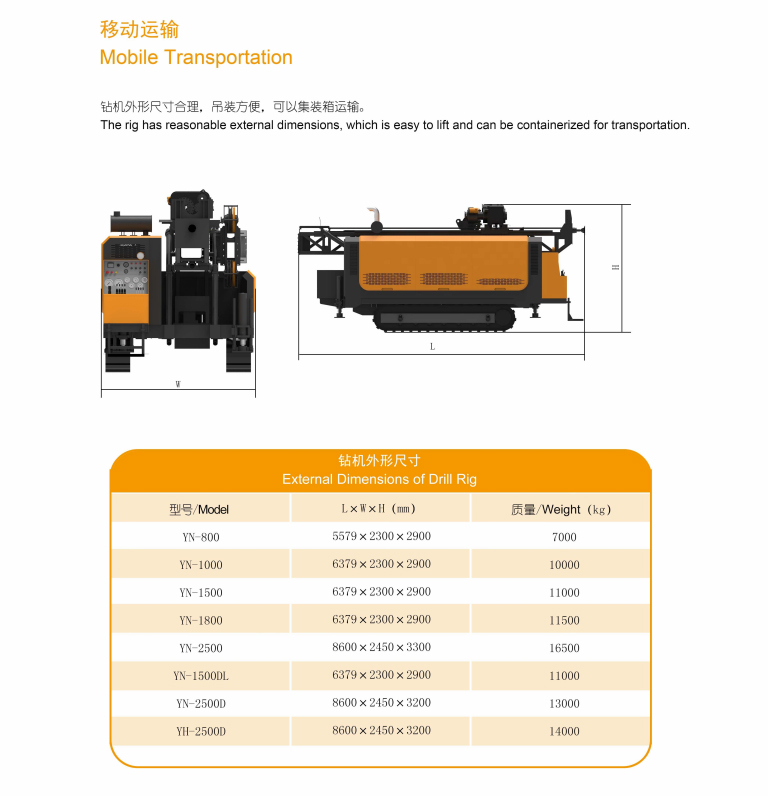

YH-2500D Drill Rig Technical Performance
YH-2500D is a double motor drive mode with a safe and reliable floor-standing chassis. It realizes the integration of machine,electricity and liquid, featuring low energy consumption, low noise and low cost. The heat dissipation system is optimized, andthe operation space has a good human-machine interaction experience.
Top-driven power head, mechanical three gears supplemented by hydraulic stepless speed regulation, to achieve highspeed and high torque drilling；
Holding device with good alignment of the drllrod, floating mechanism, and effective protection of the drill rod threadswhen the mechanical unloading buckle;
Hydraulic self-weighted clamps are safer and more powerful under large loads;
Drill rod safety joint to assist in lifting the deep hole drill pipe column, safe and reliable;
Single time footage 4.5 meters, single liting height up to 9 meters, improve the efficiency of up and down drilling.
Configured with standardized hydraulic screwing and unloading and rod swinging system, realizing less manpower operation.
| 钻进能力Drilling Capacity | N (m) | 3500 |
| H (m) | 2500 | |
| P (m) | 1800 | |
| 动力头转速 (r/min)Power Head Output Speed | 一档 / Gear 1 | 10-340 |
| 二档 / Gear 2 | 15-560 | |
| 三档 / Gear 3 | 20-840 | |
| 动力头扭矩 (N・m)Power Head Output Torque | 一档 / Gear 1 | 7230-4100 |
| 二档 / Gear 2 | 4420-2400 | |
| 三档 / Gear 3 | 2990-1790 | |
| 最大扭矩 / Maximum Torque (N・m) | 9400 | |
| 主卷扬机Main Winch | 钢丝绳直径 / Wireline Diameter (mm) | 24 |
| 卷筒容绳量 / Reel capacity (m) | 40 | |
| 提升力 / Lifting Force (kN) - 单绳 / Single Wireline | 245 | |
| 提升力 / Lifting Force (kN) - 双绳 / Double Wireline | 490 | |
| 提升速度 / Lifting Speed (m/min) - 单绳 / Single Wireline | 40 | |
| 提升速度 / Lifting Speed (m/min) - 双绳 / Double Wireline | 20 | |
| 绳索取心绞车Wireline Winch | 钢丝绳直径 / Wireline Diameter (mm) | 6 |
| 卷筒容绳量 / Reel capacity (m) | 4000 | |
| 提升力 / Lifting Force (kN) | 20 | |
| 提升速度 / Lifting Speed (m/min) | 110-200 | |
| 给进系统Feeding System | 给进方式 / Feeding Method | 液压油缸给进 / Hydraulic Cylinder Feeding |
| 给进行程 / Feeding stroke (mm) | 3800 | |
| 给进力 / Feeding Force (kN) | 100 | |
| 提升力 / Lifting Force (kN) | 360 | |
| 钻塔Drill Tower | 高度 / Height (mm) | 12960 |
| 负荷 / Load Capacity (kg) | 75000 | |
| 钻杆最大提升长度 / Maximum Lifting Length Of Drill Rod (m) | 9 | |
| 钻孔倾角 / Drilling Inclination (°) | 45-90 | |
| 竖塔方式 / Vertical Method | 液压油缸起放 / Hydraulic Cylinder Lifting and Releasing | |
| 电机Motor | 功率 / Power (kW) | 132 |
| 转速 / Rotation Speed (rmp) | 1490 | |
| 液压系统Hydraulic System | 主泵工作压力 / Main-pump working pressure (MPa) | 28 |
| 副泵工作压力 / Vice-pump working pressure (MPa) | 21 | |
| 钻机质量 / Total Weight (kg) | 14000 |
