YN-1500DL
QIDELI
YN-1500DL Drill Rig Technical Performance
YN-1500DL drillrig is a dual motor drive mode, featuring low energy consumption, low noise and low cost. Optimized heatdissipation system with good man-machine interaction experience operation space
Crawler drive walking mode, remote control operation, convenient transfer, safe and fast;
Single time back-lifting of 3 meters, a single lifting height of up to 6 meters, improve the efficiency of up and down drlling:
Hydraulic self-weighted gripper is safer and more powerful under large loads;
Drill rod safety joints assist in lifting the deep hole drill rod column, safe and reliable;
Optional standardized drill pipe swing system, realizing less manpower operation.

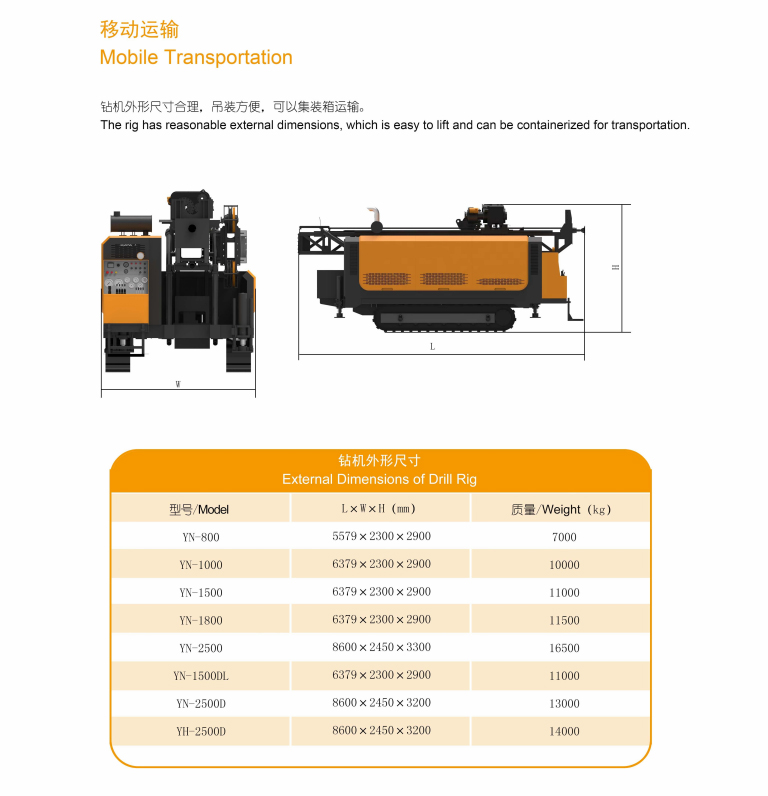

| 钻进能力Drilling Capacity | N (m) | 1500 |
| H (m) | 1000 | |
| P (m) | 700 | |
| 动力头转速 (r/min)Power Head Output Speed | 一档 / Gear 1 | 10-520 |
| 二档 / Gear 2 | 20-1000 | |
| 动力头扭矩 (N・m)Power Head Output Torque | 一档 / Gear 1 | 3930-1840 |
| 二档 / Gear 2 | 2060-970 | |
| 最大扭矩 / Maximum Torque (N・m) | 5110 | |
| 主卷扬机Main Winch | 钢丝绳直径 / Wireline Diameter (mm) | 20 |
| 卷筒容绳量 / Reel capacity (m) | 26 | |
| 提升力 / Lifting Force (kN) - 单绳 / Single Wireline | 95 | |
| 提升力 / Lifting Force (kN) - 双绳 / Double Wireline | 190 | |
| 提升速度 / Lifting Speed (m/min) - 单绳 / Single Wireline | 40 | |
| 提升速度 / Lifting Speed (m/min) - 双绳 / Double Wireline | 20 | |
| 绳索取心绞车Wireline Winch | 钢丝绳直径 / Wireline Diameter (mm) | 6 |
| 卷筒容绳量 / Reel capacity (m) | 1500 | |
| 提升力 / Lifting Force (kN) | 18 | |
| 提升速度 / Lifting Speed (m/min) | 110-200 | |
| 给进系统Feeding System | 给进方式 / Feeding Method | 液压油缸给进 / Hydraulic Cylinder Feeding |
| 给进行程 / Feeding stroke (mm) | 3500 | |
| 给进力 / Feeding Force (kN) | 65 | |
| 提升力 / Lifting Force (kN) | 170 | |
| 钻塔Drill Tower | 高度 / Height (mm) | 9960 |
| 负荷 / Load Capacity (kg) | 30000 | |
| 钻杆最大提升长度 / Maximum Lifting Length Of Drill Rod (m) | 6 | |
| 钻孔倾角 / Drilling Inclination (°) | 45-90 | |
| 竖塔方式 / Vertical Method | 液压油缸起放 / Hydraulic Cylinder Lifting and Releasing | |
| 电机Motor | 功率 / Power (kW) | 90（主泵 / Main-pump）+5.5（副泵 / Vice-pump） |
| 转速 / Rotation Speed (rmp) | 1490 | |
| 液压系统Hydraulic System | 主泵工作压力 / Main-pump working pressure (MPa) | 26 |
| 副泵工作压力 / Vice-pump working pressure (MPa) | 21 | |
| 泥浆泵 / Mud Pump | 型号 / Model | BW-250 |
| 钻机行走Move | 行走方式 / Move Mode | 履带式 / Crawler Walking |
| 行走速度 / Move Speed (km/h) | 2.5 | |
| 爬坡能力 / Climbing Capacity (°) | 0-25 | |
| 钻机质量 / Total Weight (kg) | 11000 |
