YN-1800
QIDELI
YN-1800 Drill Rig Technical Performance
All the functions of YN-1800 drill rig are driven by hydraulics, which has more power, and it chooses BW320 mud pump.
which is more suitable for the drilling construction of special process and special environment in special stratum.
Crawler drive walking mode, remote control operation, convenient transfer, safe and fast;
Single time back-lifting of 3 meters, a single lifting height of up to 6 meters, improve the effciency of up and down driling;
Hydraulic self-weighted gripper is safer and more powerful under large loads;
Drill rod safety joints assist in lifting the deep hole drill rod column, safe and reliable;
Optional standardized drill pipe swing system, realizing less manpower operation.
| 钻进能力Drilling Capacity | N (m) | 1800 |
| H (m) | 1200 | |
| P (m) | 800 | |
| 动力头转速Power Head Output Speed | 一档 / Gear 1 (r/min) | 10-490 |
| 二档 / Gear 2 (r/min) | 20-950 | |
| 动力头扭矩Power Head Output Torque | 一档 / Gear 1 (N・m) | 4150-1930 |
| 二档 / Gear 2 (N・m) | 2160-1020 | |
| 最大扭矩 / Maximum Torque (N・m) | 5370 | |
| 主卷扬机Main Winch | 钢丝绳直径 / Wireline Diameter (mm) | 20 |
| 卷筒容绳量 / Reel capacity (m) | 26 | |
| 提升力 / Lifting Force (kN) | 单绳 / Single Wireline: 100双绳 / Double Wireline: 200 | |
| 提升速度 / Lifting Speed (m/min) | 单绳 / Single Wireline: 40双绳 / Double Wireline: 20 | |
| 绳索取心绞车Wireline Winch | 钢丝绳直径 / Wireline Diameter (mm) | 6 |
| 卷筒容绳量 / Reel capacity (m) | 1800 | |
| 提升力 / Lifting Force (kN) | 18 | |
| 提升速度 / Lifting Speed (m/min) | 110-200 | |
| 给进系统Feeding System | 给进方式 / Feeding Method | 液压油缸给进 / Hydraulic Cylinder Feeding |
| 给进行程 / Feeding stroke (mm) | 3500 | |
| 给进力 / Feeding Force (kN) | 75 | |
| 提升力 / Lifting Force (kN) | 185 | |
| 钻塔Drill Tower | 高度 / Height (mm) | 9960 |
| 负荷 / Load Capacity (kg) | 30000 | |
| 钻杆最大提升长度 / Maximum Lifting Length Of Drill Rod (m) | 6 | |
| 钻孔倾角 / Drilling Inclination (°) | 45-90 | |
| 竖塔方式 / Vertical Method | 液压油缸起放 / Hydraulic Cylinder Lifting and Releasing | |
| 柴油机Diesel | 功率 / Power (kW) | 178 |
| 转速 / Rotation Speed (rmp) | 2200 | |
| 液压系统Hydraulic System | 主泵工作压力 / Main-pump working pressure (MPa) | 26 |
| 副泵工作压力 / Vice-pump working pressure (MPa) | 21 | |
| 泥浆泵 / Mud Pump | 型号 / Model | BW-320 |
| 钻机行走Move | 行走方式 / Move Mode | 履带式 / Crawler Walking |
| 行走速度 / Move Speed (km/h) | 2.5 | |
| 爬坡能力 / Climbing Capacity (°) | 0-25 | |

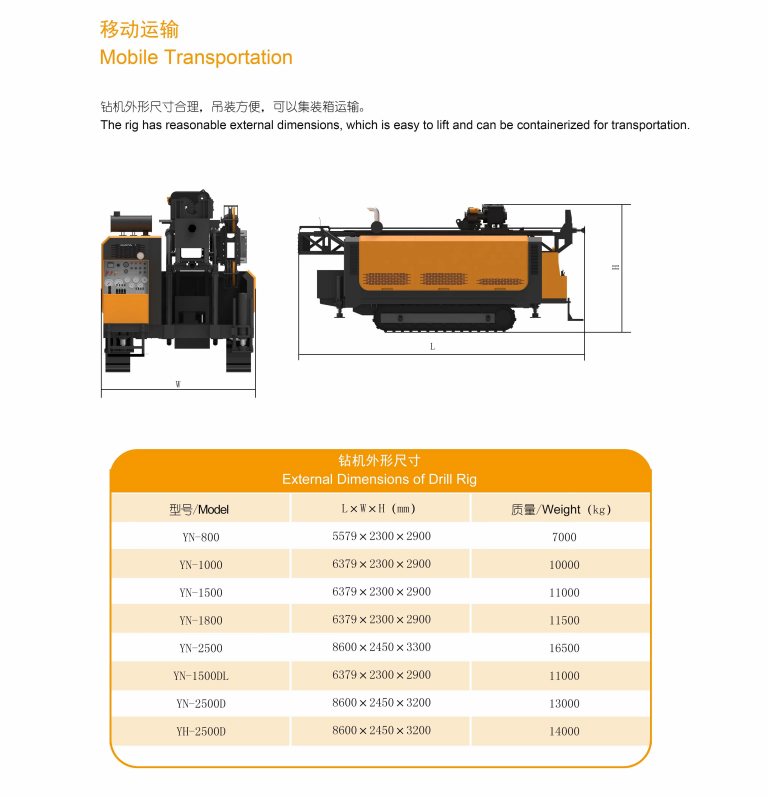

| 钻机质量 / Total Weight | Total Weight (kg) | 11500 |
