YN-800
QIDELI

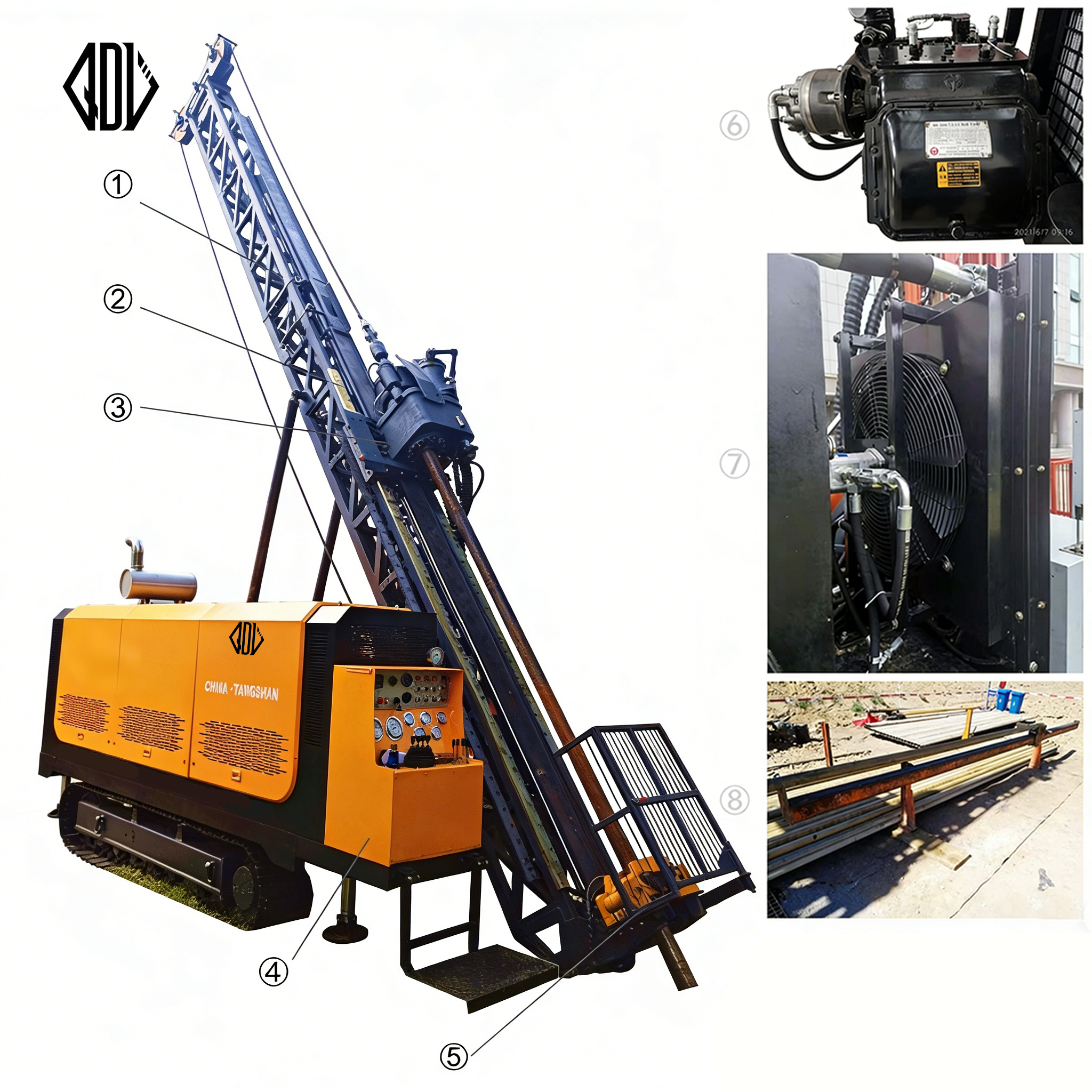

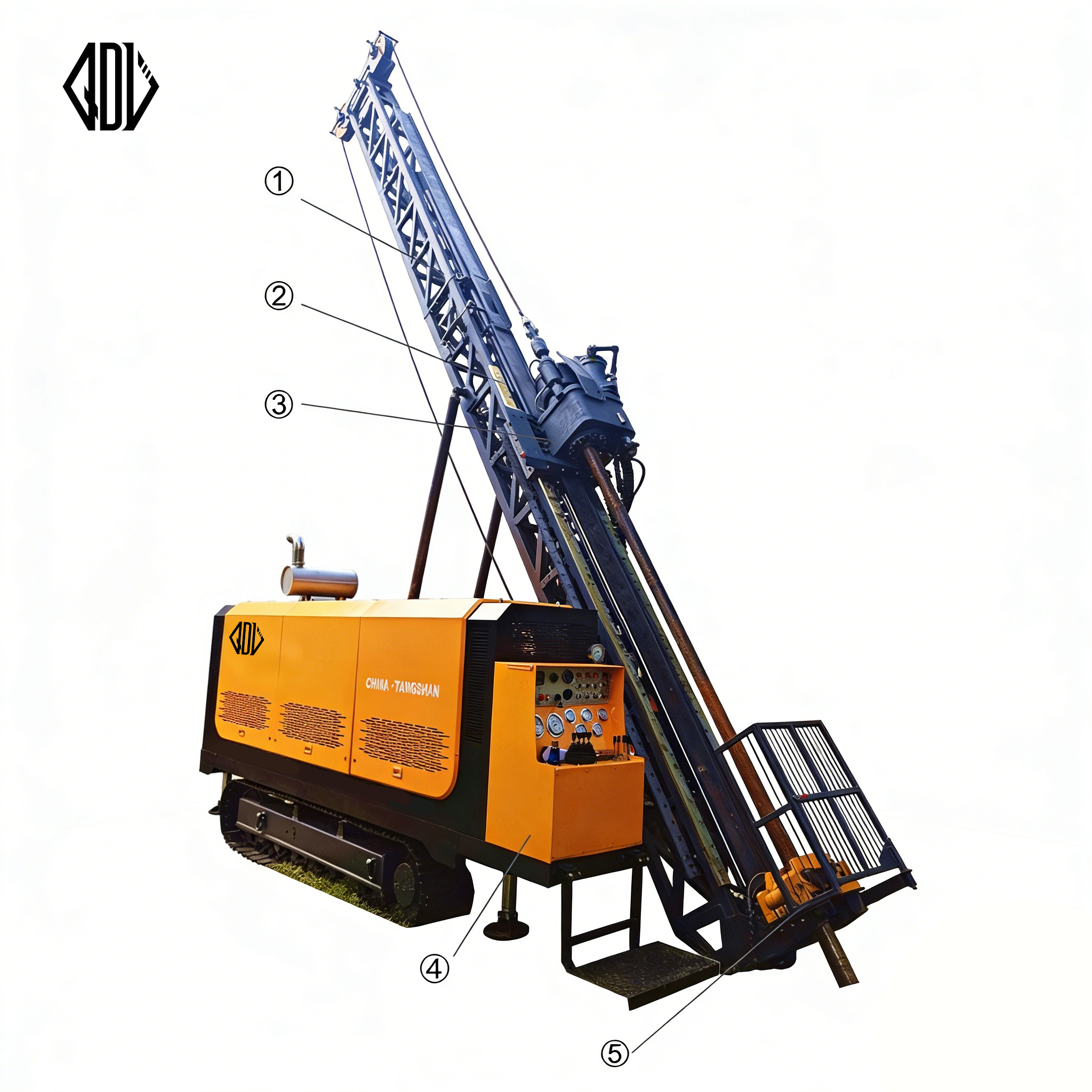

YN-800 Drill Rig Technical Performance
YN-800 hydraulic drill rig, chuck type power head, high strength rods to meet the requirements of large lifting force lifting and large pressure drilling.
Crawler walking mode, remote control operation, convenient transfer, safe and fast;
Single time feed 1.5 meters, single lifting height up to 3 meters, improve the efficiency of up and down drilling;
Double clamps are stable, safe and reliable, the thread alignment of the righting mechanism is good, and the mechanical unloading buckle is safe and labor-saving;
Thin wall wireline drilling tools construction, efficient and fast drilling, can get a greater drilling depth.

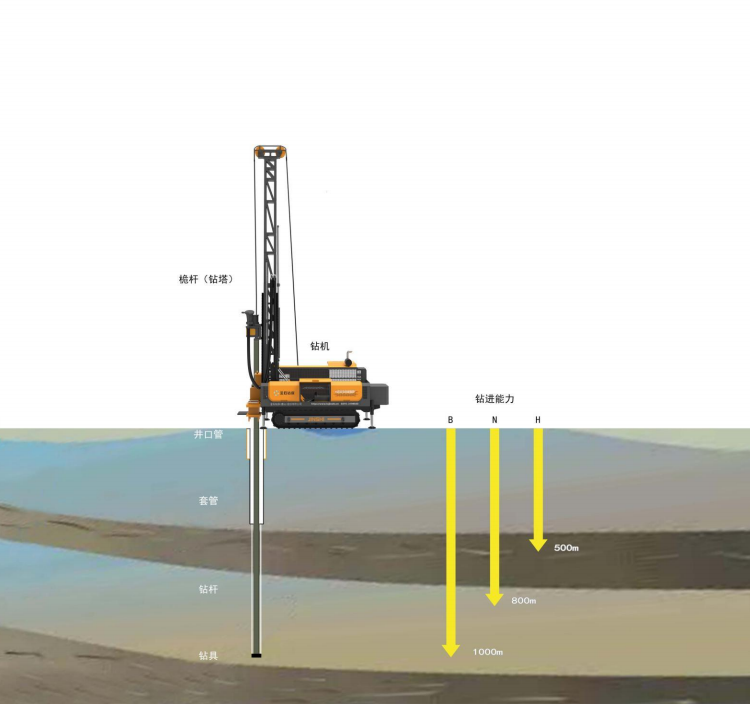

| 钻进能力 (m)Drilling Capacity | B | 1000 |
| N | 800 | |
| H | 500 | |
| 动力头Power Head | 转速 / Speed (r/min) | 0-1050 |
| 扭矩 / Torque (N・m) | 0-1200 | |
| 最大扭矩 / Maximum Torque (N・m) | 1560 | |
| 绳索取心绞车Wireline Winch | 钢丝绳直径 / Wireline Diameter (mm) | 6 |
| 卷筒容绳量 / Reel capacity (m) | 800 | |
| 提升力 / Lifting Force (kN) | 100 | |
| 提升速度 / Lifting Speed (m/min) | 60-100 | |
| 给进系统Feeding System | 给进方式 / Feeding Method | 液压油缸 / Hydraulic Cylinder Feeding |
| 给进行程 / Feeding stroke (mm) | 2000 | |
| 给进力 / Feeding Force (kN) | 30 | |
| 提升力 / Lifting Force (kN) | 100 | |
| 钻塔Drill Tower | 高度 / Height (mm) | 6000 |
| 负荷 / Load Capacity (kg) | 25000 | |
| 钻杆最大提升长度 / Maximum Lifting Length Of Drill Rod (m) | 4.5 | |
| 钻孔倾角 / Drilling Inclination (°) | 45-90 | |
| 竖塔方式 / Vertical Method | 液压油缸起放 / Hydraulic Cylinder Lifting and Releasing | |
| 柴油机Diesel | 功率 / Power (kW) | 110 |
| 转速 / Rotation Speed (rmp) | 2200 | |
| 液压系统Hydraulic System | 主泵工作压力 / Main-pump working pressure (MPa) | 26 |
| 副泵工作压力 / Vice-pump working pressure (MPa) | 21 | |
| 泥浆泵 / Mud Pump | 型号 / Model | BW-160 |
| 钻机行走Move | 行走方式 / Move Mode | 履带式 / Crawler Walking |
| 行走速度 / Move Speed (km/h) | 1.8 | |
| 爬坡能力 / Climbing Capacity (°) | 0-25 | |
| 钻机质量 / Total Weight | 总重量 (kg) | 7000 |
